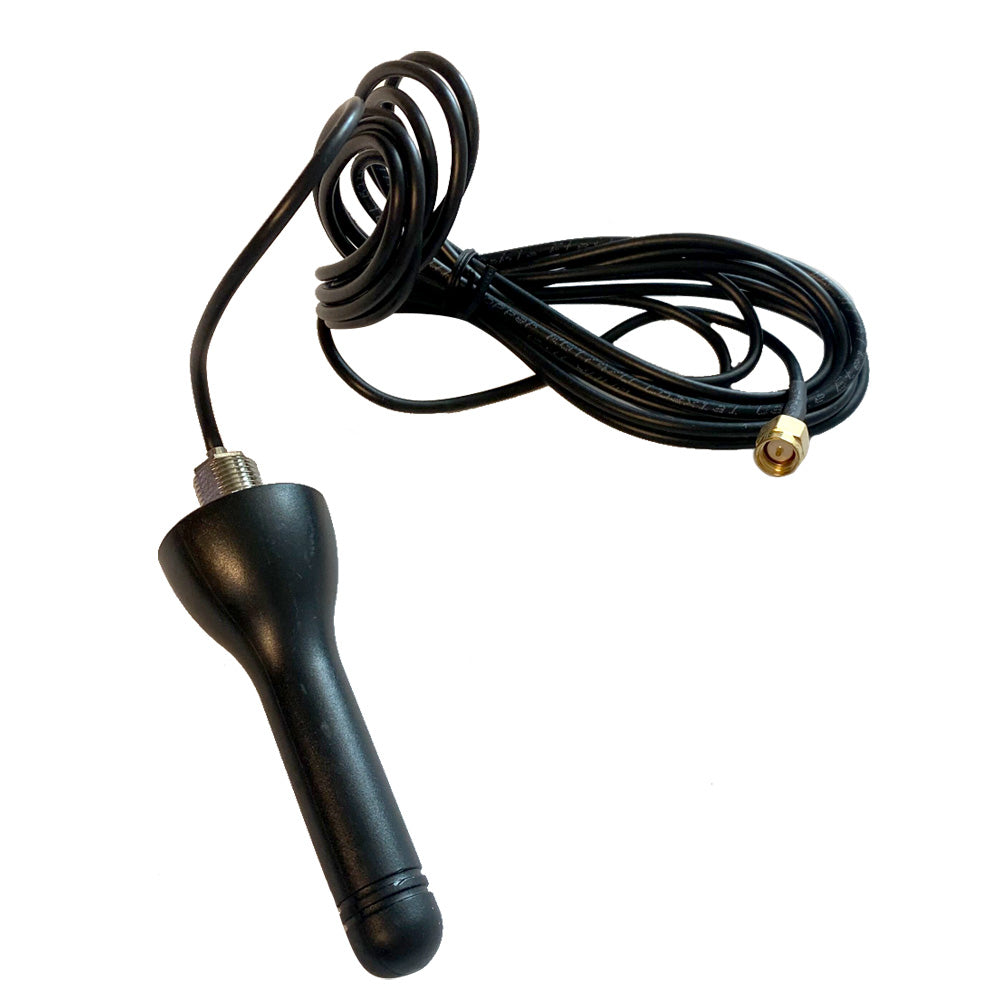

Outdoor Antenna for GX LTE 4G-A

This antenna is optimized for 4G frequency bands and, as such, will have slightly better reception on the 4G network. It can be used with the GX LTE 4G for 2G, 3G, and 4G bands.

If the 2G/3G variant does not provide sufficient signal quality in an installation, the solution is to contact a local GSM antenna provider. All the necessary information, including a link to the cellular modem (Simcom) used, can be found in this manual.

Specifications:

• Mounting Option: Screw mount
• Cable Type: RG-316
• Cable Length: 3.0 m
• Connector: SMA male straight
• Frequencies: 800/900/1800/1900/2100 MHz
• Signal Gain: 3 dBi
